| Nominal pertundere diam | Deviatio | Nominal diametri exterioris | Deviatio | ||||
| > | <= | △ dmp | > | <= | △ Dmp | ||
| 12 | 18 | 0 | 18 | 30 | 50 | 0 | -1 |
| 18 | 24 | 0 | 18 | 50 | 80 | 0 | -13 |
| 24 | 30 | 0 | 18 | 80 | 120 | 0 | -15 |
| 30 | 40 | 0 | 18 | 120 | 150 | 0 | -18 |
| 40 | 50 | 0 | 18 | 150 | 180 | 0 | -25 |
| 50 | 60 | 0 | 18 | 180 | 250 | 0 | -30 |
| 60 | 90 | 0 | 25 | ||||
| 90 | 120 | 0 | 30 | ||||
DHK globulus gestus inserta producuntur cum globus alvi radiali C3 pilae sulci profundae gerentis.
Valores singillatim in tabula infra recensentur.
| Nominal Bore diam (mm) | Radial internum alvi (um) | ||
| > | <= | min. | Max. |
| 12 | 18 | 11 | 25 |
| 18 | 30 | 13 | 28 |
| 30 | 40 | 15 | 33 |
| 40 | 50 | 18 | 26 |
| 50 | 65 | 23 | 43 |
| 65 | 80 | 25 | 51 |
| 80 | 100 | 30 | 58 |
| 100 | 120 | 36 | 66 |
| Mod*el | Magnitudo | rated onus | ||||||||||||||||
| hastile diameter | Pondus | d | D | B | B1 | E | F | F1 | G | L | N | R | rs min | A/F | Limitandi celeritas ng uncto min -1 | Dynamic onus | Static onus | |

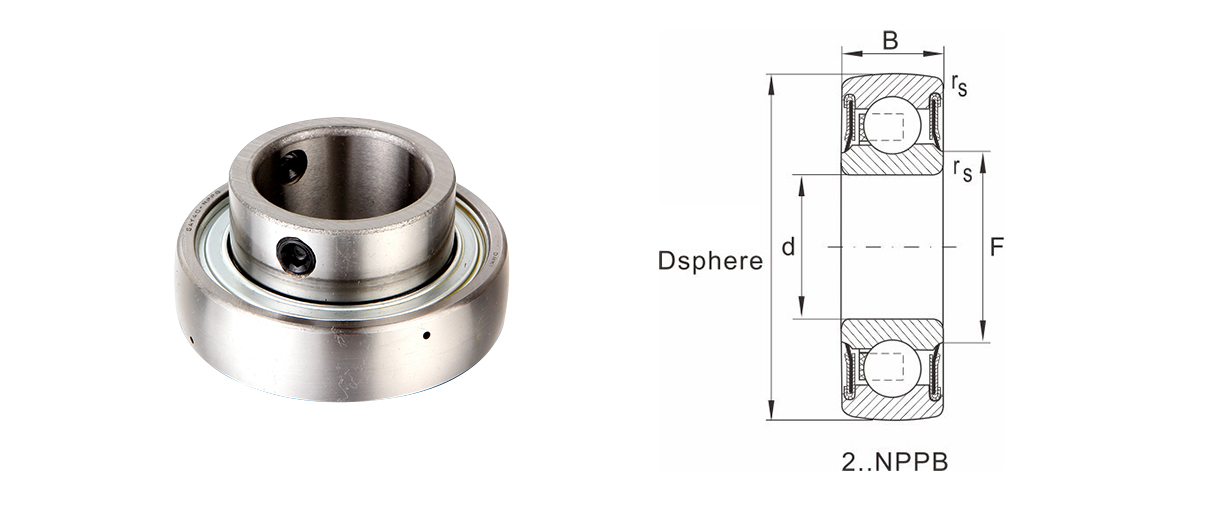

201NPPB | 12 | 0.04 | 12 | 32 | 10 | -- | -- | 17.1 | -- | -- | -- | -- | -- | 0.6 | -- | 18300 | 6800 | 3050 |
AY12NPPB | 12 | 0.1 | 12 | 40 | 12 | -- | 6 | 23.9 | -- | -- | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |

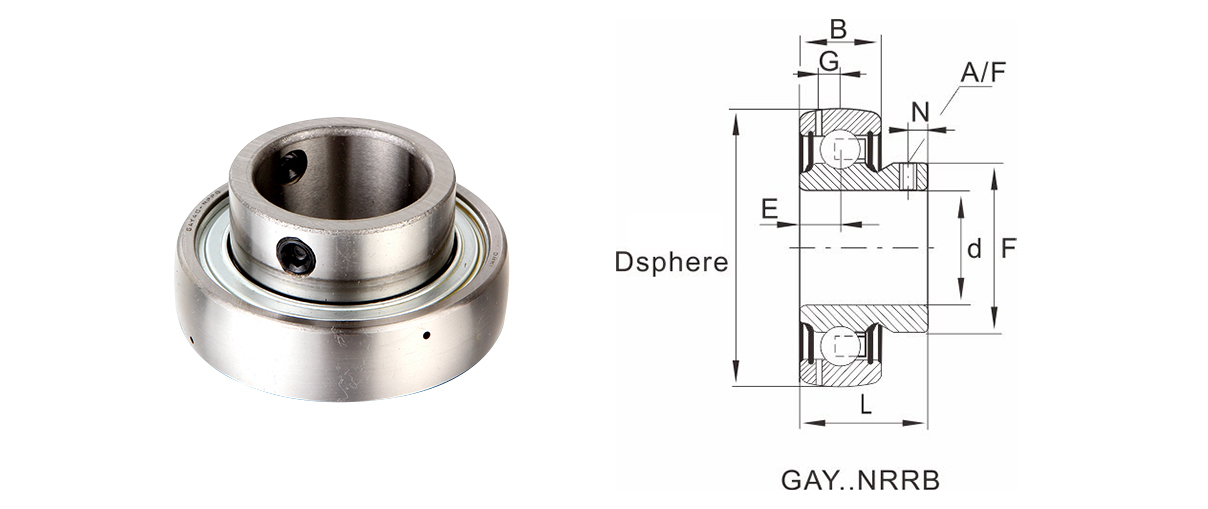

GAY12NPPB | 12 | 0.1 | 12 | 40 | 12 | -- | 6 | 23.9 | -- | 3.3 | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |

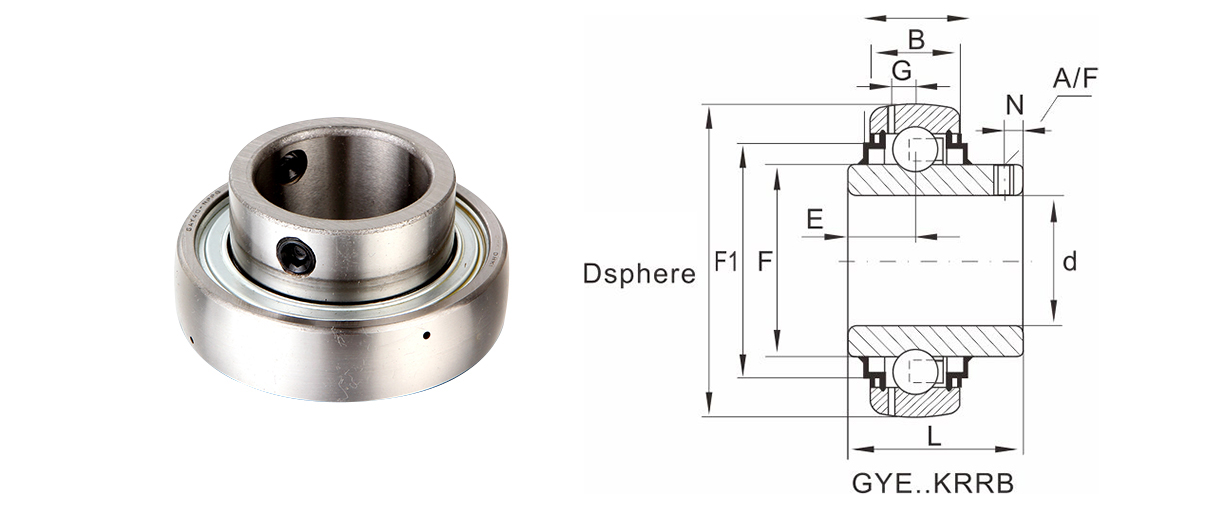

GYE12KRRB | 12 | 0.11 | 12 | 40 | 12 | 16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
AY15NPPB | 15 | 0.09 | 15 | 40 | 12 | -- | 6 | 23.9 | -- | -- | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GAY15NPPB | 15 | 0.09 | 15 | 40 | 12 | -- | 6 | 23.9 | -- | 3.3 | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE15KRRB | 15 | 0.1 | 15 | 40 | 12 | 16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE16KRRB | 16 | 0.1 | 16 | 40 | 12 | 16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
203NPPB | 17 | 0.06 | 17 | 40 | 12 | -- | -- | 23.9 | -- | -- | -- | 4 | -- | 0.6 | -- | 13000 | 9600 | 4750 |
AY17NPPB | 17 | 0.08 | 17 | 40 | 12 | -- | 6 | 23.9 | -- | -- | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GAY17NPPB | 17 | 0.08 | 17 | 40 | 12 | -- | 6 | 23.9 | -- | 3.3 | 22 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
GYE17KRRB | 17 | 0.09 | 17 | 40 | 12 | 16.6 | 11.5 | 23.9 | 31.6 | 3.3 | 27.4 | 4 | -- | -- | 2.5 | -- | 9600 | 4750 |
204NPPB | 20 | 0.11 | 20 | 47 | 14 | -- | -- | 26.5 | -- | -- | -- | -- | -- | 1 | -- | 11000 | 12800 | 6600 |
AY20NPPB | 20 | 0.13 | 20 | 47 | 14 | -- | 7 | 28.3 | -- | -- | 25 | 4.5 | -- | -- | 2.5 | -- | 12800 | 6600 |
GAY20NPPB | 20 | 0.13 | 20 | 47 | 14 | -- | 7 | 28.3 | -- | 3.7 | 25 | 4.5 | -- | -- | 2.5 | -- | 12800 | 6600 |

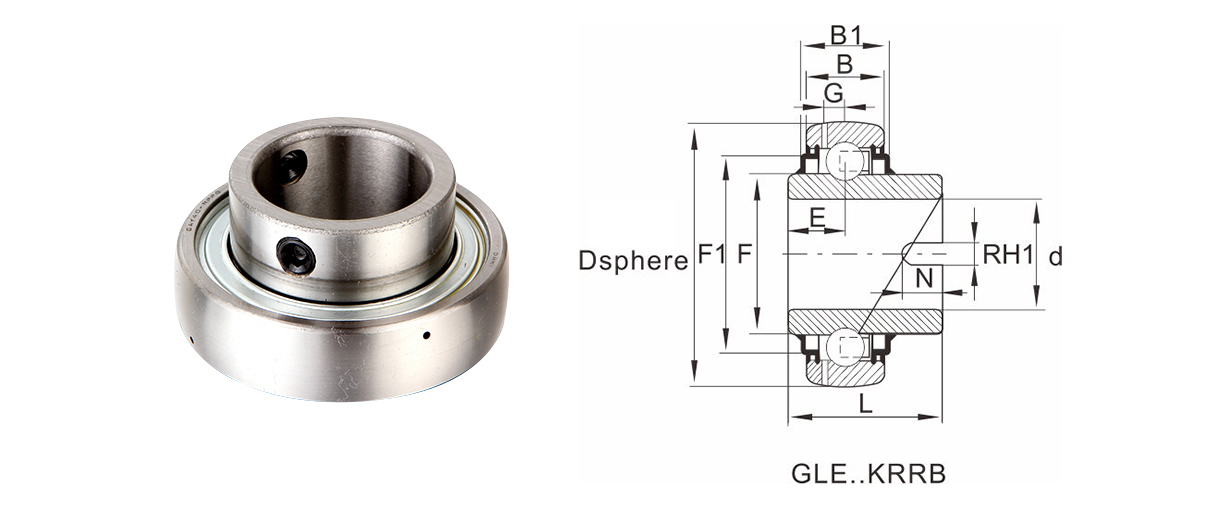

GLE20KRRB | 20 | 0.16 | 20 | 47 | 14 | 16.6 | 15.6 | 27.6 | 37.4 | 3.7 | 34.1 | 7 | 7 | -- | -- | -- | 12800 | 6600 |

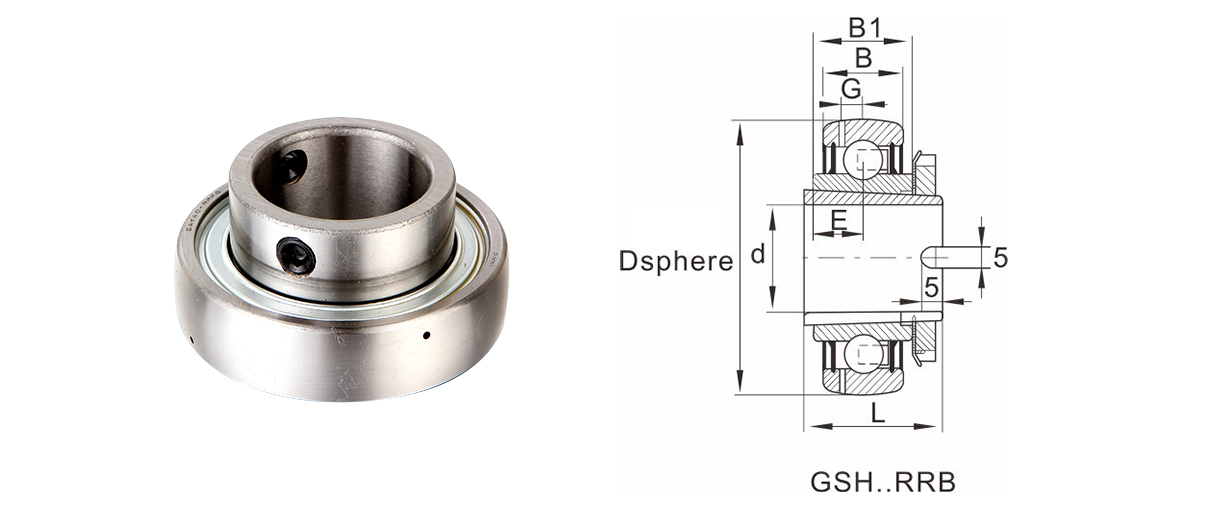

GSH20RRB | 20 | 0.14 | 20 | 47 | 14 | 15 | 7.5 | -- | -- | 3.7 | 28 | -- | -- | -- | -- | -- | 12700 | 6600 |
GYE20KRRB | 20 | 0.17 | 20 | 47 | 14 | 16.6 | 12.7 | 27.6 | 37.4 | 3.7 | 31 | 4.5 | -- | -- | 2.5 | -- | 12800 | 6600 |
205NPPB | 25 | 0.13 | 25 | 52 | 15 | -- | -- | 30.3 | -- | -- | -- | -- | -- | 1 | -- | 88000 | 14000 | 7800 |
AY25NPPB | 25 | 0.16 | 25 | 52 | 15 | -- | 7.5 | 33.5 | -- | -- | 27 | 5 | -- | -- | 2.5 | -- | 14000 | 7800 |
GAY25NPPB | 25 | 0.16 | 25 | 52 | 15 | -- | 7.5 | 33.5 | -- | 3.9 | 27 | 5 | -- | -- | 2.5 | -- | 14000 | 7800 |
GLE25KRRB | 25 | 0.19 | 25 | 52 | 15 | 16.7 | 14.7 | 33.8 | 42.5 | 3.9 | 34.9 | 8 | 7 | -- | -- | -- | 14000 | 7800 |
GSH25RRB | 25 | 0.17 | 25 | 52 | 15 | 15 | 7.5 | -- | -- | 3.9 | 28 | -- | -- | -- | -- | -- | 13600 | 7800 |
GYE25KRRB | 25 | 0.2 | 25 | 52 | 15 | 16.7 | 14.3 | 33.8 | 42.5 | 3.9 | 34.1 | 5 | -- | -- | 2.5 | -- | 14000 | 7800 |
206NPPB | 30 | 0.2 | 30 | 62 | 16 | -- | -- | 37.4 | -- | -- | -- | -- | -- | 1 | -- | 7300 | 19500 | 11300 |
AY30NPPB | 30 | 0.25 | 30 | 62 | 18 | -- | 9 | 39.4 | -- | -- | 30 | 5 | -- | -- | 3 | -- | 19500 | 11300 |
GAY30NPPB | 30 | 0.25 | 30 | 62 | 18 | -- | 9 | 39.4 | -- | 5 | 30 | 5 | -- | -- | 3 | -- | 19500 | 11300 |
GLE30KRRB | 30 | 0.3 | 30 | 62 | 18 | 20.7 | 14.5 | 40.2 | 52 | 5 | 36.5 | 8 | 7 | -- | -- | -- | 19500 | 11300 |
GSH30RRB | 30 | 0.27 | 30 | 62 | 18 | 18 | 9 | -- | -- | 5 | 32 | -- | -- | -- | -- | -- | 18900 | 11300 |
GYE30KRRB | 30 | 0.33 | 30 | 62 | 18 | 20.7 | 15.9 | 40.2 | 52 | 5 | 38.1 | 5 | -- | -- | 3 | -- | 19500 | 11300 |
207NPPB | 35 | 0.29 | 35 | 72 | 17 | -- | -- | 42.4 | -- | -- | -- | -- | -- | 1 | -- | 6300 | 25500 | 15300 |
GAY35NPPB | 35 | 0.39 | 35 | 72 | 19 | -- | 9.5 | 46.9 | -- | 5.7 | 35 | 6 | -- | -- | 3 | -- | 25500 | 15300 |
GLE35KRRB | 35 | 0.43 | 35 | 72 | 19 | 22.5 | 15.7 | 46.8 | 60.3 | 5.7 | 37.7 | 8 | 7 | -- | -- | -- | 25500 | 15300 |
GSH35RRB | 35 | 0.43 | 35 | 72 | 19 | 19 | 9.5 | -- | -- | 5.7 | 34 | -- | -- | -- | -- | -- | 24900 | 15300 |
GYE35KRRB | 35 | 0.49 | 35 | 72 | 19 | 22.5 | 17.5 | 46.8 | 60.6 | 5.7 | 42.9 | 6 | -- | -- | 3 | -- | 25500 | 15300 |
208NPPB | 40 | 0.37 | 40 | 80 | 18 | -- | -- | 48.4 | -- | -- | -- | -- | -- | 1.1 | -- | 4900 | 32500 | 19800 |
GAY40NPPB | 40 | 0.51 | 40 | 80 | 21 | -- | 10.5 | 52.4 | -- | 6.2 | 39.5 | 8 | -- | -- | 4 | -- | 32500 | 19800 |
GLE40KRRB | 40 | 0.58 | 40 | 80 | 21 | 23.5 | 15.9 | 52.3 | 68.3 | 6.2 | 42.9 | 9 | 7 | -- | -- | -- | 32500 | 19800 |
GSH40RRB | 40 | 0.54 | 40 | 80 | 21 | 22 | 11 | -- | -- | 6.2 | 38 | -- | -- | -- | -- | -- | 29500 | 19800 |
GYE40KRRB | 40 | 0.65 | 40 | 80 | 21 | 23.5 | 19 | 52.3 | 68.3 | 6.2 | 49.2 | 8 | -- | -- | 4 | -- | 32500 | 23200 |
GYE40KRRB-209 | 40 | 0.7 | 40 | 85 | 22 | 26.4 | 19 | 57.9 | 72.3 | 6.4 | 49.2 | 8 | -- | -- | 4 | -- | 32500 | 20400 |
209NPPB | 45 | 0.41 | 45 | 85 | 19 | -- | -- | 53.2 | -- | -- | -- | -- | -- | 1.1 | -- | 4900 | 32500 | 20400 |
GAY45NPPB | 45 | 0.55 | 45 | 85 | 22 | -- | 11 | 57 | -- | 6.4 | 41.5 | 8 | -- | -- | 4 | -- | 32500 | 20400 |
GLE45KRRB | 45 | 0.66 | 45 | 85 | 22 | 26.4 | 17.4 | 57.9 | 72.3 | 6.4 | 42.9 | 9 | 7 | -- | -- | -- | 32500 | 20400 |
GYE45KRRB | 45 | 0.7 | 45 | 85 | 22 | 26.4 | 19 | 57 | 72.3 | 6.4 | 49.2 | 8 | -- | -- | 4 | -- | 32500 | 20400 |
GYE45KRRB-210 | 45 | 0.8 | 45 | 90 | 22 | 26.4 | 19 | 62.8 | 77.3 | 6.5 | 51.6 | 8.5 | -- | -- | 4 | -- | 32500 | 20400 |
210NPPB | 50 | 0.46 | 50 | 90 | 20 | -- | -- | 58.2 | -- | -- | -- | -- | -- | 1.1 | -- | 4400 | 35000 | 232000 |
GAY50NPPB | 50 | 0.62 | 50 | 90 | 22 | -- | 11 | 62 | -- | 6.5 | 43 | 9 | -- | -- | 4 | -- | 35000 | 232000 |
GLE50KRRB | 50 | 0.76 | 50 | 90 | 22 | 26.4 | 19 | 62.8 | 77.3 | 6.5 | 49.2 | 10 | 7 | -- | -- | -- | 35000 | 232000 |
GYE50KRRB | 50 | 0.8 | 50 | 90 | 22 | 26.4 | 19 | 62.8 | 77.3 | 6.5 | 51.6 | 8.5 | -- | -- | 4 | -- | 35000 | 232000 |
GYE50KRRB-211 | 50 | 1.1 | 50 | 100 | 25 | 29 | 22.2 | 69.8 | 85.9 | 7 | 55.6 | 9 | -- | -- | 4 | -- | 43500 | 29000 |
GYE55KRRB | 55 | 1.1 | 55 | 100 | 25 | 29 | 22.2 | 69.8 | 85.9 | 7 | 55.6 | 9 | -- | -- | 4 | -- | 43500 | 29000 |
GAY60NPPB | 60 | 1.07 | 60 | 110 | 24 | -- | 13 | 76 | -- | 7.6 | 47 | 10 | -- | -- | 5 | -- | 52000 | 36000 |
GLE60KRRB | 60 | 0.52 | 60 | 110 | 24 | 29 | 24.6 | 76.5 | 95.9 | 7.6 | 61.9 | 12 | 9 | -- | -- | -- | 52000 | 36000 |
GYE60KRRB | 60 | 1.32 | 60 | 110 | 24 | 29 | 25.4 | 76.5 | 94.9 | 7.6 | 65.1 | 10 | -- | -- | 5 | -- | 52000 | 36000 |
GYE60KRRB-214 | 60 | 1.95 | 60 | 125 | 28 | 32 | 30.2 | 85.2 | 109 | 8.9 | 74.6 | 12 | -- | -- | 5 | -- | 62000 | 44000 |
GYE65KRRB | 65 | 2.25 | 65 | 125 | 28 | 32 | 30.2 | 85.2 | 109 | 8.9 | 74.6 | 12 | -- | -- | 5 | -- | 62000 | 44000 |
GYE65KRRB-213 | 65 | 1.84 | 65 | 120 | 23 | 27.7 | 25.4 | 80.9 | 102.2 | 7.4 | 65.1 | 10 | -- | -- | 5 | -- | 57000 | 40000 |
GLE70KRRB | 70 | 2.25 | 70 | 125 | 28 | 32 | 27 | 85.2 | 109 | 8.9 | 68.2 | 12 | 9 | -- | -- | -- | 62000 | 44000 |
GYE70KRRB | 70 | 1.95 | 70 | 125 | 28 | 32 | 30.2 | 85.2 | 109 | 8.9 | 74.6 | 12 | -- | -- | 5 | -- | 62000 | 44000 |
GYE75KRRB | 75 | 2.19 | 75 | 130 | 28 | 30.5 | 33.3 | 90 | 113 | 8.5 | 77.8 | 12 | -- | -- | 5 | -- | 62000 | 44500 |
GYE80KRRB | 80 | 2.93 | 80 | 140 | 30 | 38 | 33.3 | 97 | 120 | 8.8 | 82.6 | 12 | -- | -- | 5 | -- | 72000 | 54000 |
GYE90KRRB | 90 | 4.2 | 90 | 160 | 32 | 35 | 39.7 | 109.4 | 138 | 10 | 96 | 12 | -- | -- | 6 | -- | 96000 | 72000 |
