DHK duplex ordo pilae sulcus altae gestus eduntur cum normali alvi interna (CN) ut vexillum. Partes cum aliis alvi internis coetus postulantibus proferri possunt.
Valores singillatim in capitulo tolerantiae gestuum radialium recensentur, pag.
DHK Single Row / Geminus Row Altus Sulcus Ball Ferens Radial Clearance Standard
| Bore Dia. | C2(um) | CN(um) | C3(um) | C4(um) | C5(um) | |||
| <= | <= | |||||||
| 2.5 6 | 0 7 | 2 13 | 8 23 | -- -- | -- -- | |||
| 6 10 | 0 7 | 2 13 | 8 23 | 14 29 | 20 37 | |||
| 10 18 | 0 9 | 3 18 | 11 25 | 18 33 | 25 45 | |||
| 18 24 | 0 10 | 5 20 | 13 28 | 20 36 | 28 48 | |||
| 24 30 | 1 11 | 5 20 | 13 28 | 23 41 | 30 53 | |||
| 30 40 | 1 11 | 6 20 | 15 33 | 28 46 | 40 64 | |||
| 40 50 | 1 11 | 6 23 | 18 36 | 30 51 | 45 73 | |||
| 50 65 | 1 15 | 8 28 | 23 43 | 38 61 | 55 90 | |||
| 65 80 | 1 15 | 10 30 | 25 51 | 46 71 | 65 105 | |||
| 80 100 | 1 18 | 12 36 | 30 58 | 53 84 | 75 120 | |||
| 100 120 | 2 20 | 15 41 | 36 66 | 61 97 | 90 140 | |||
| 120 140 | 2 23 | 18 48 | 41 81 | 71 114 | 105 160 | |||
| 140 160 | 2 23 | 18 53 | 46 91 | 81 130 | 120 180 | |||
| 160 180 | 2 25 | 20 61 | 53 102 | 91 147 | 135 200 | |||
| 180 200 | 2 30 | 25 71 | 63 117 | 107 163 | 150 230 | |||
| 200 225 | 4 32 | 28 82 | 73 132 | 120 187 | 175 255 | |||
| 225 250 | 4 36 | 31 92 | 87 152 | 140 217 | 205 290 | |||
| 250 280 | 4 39 | 36 97 | 97 162 | 152 237 | 225 320 | |||
| 280 315 | 8 45 | 42 110 | 110 180 | 175 260 | 260 360 | |||
| 315 355 | 8 50 | 50 120 | 120 200 | 200 290 | 290 405 | |||
| 355 400 | 8 60 | 60 140 | 140 230 | 230 330 | 330 460 | |||
| 400 450 | 10 70 | 70 160 | 160 260 | 260 370 | 370 520 | |||
| 450 500 | 10 80 | 80 180 | 180 290 | 290 410 | 410 570 | |||
| 500 560 | 20 90 | 90 200 | 200 320 | 320 460 | 460 630 | |||
| 560 630 | 20 100 | 100 220 | 220 350 | 350 510 | 540 700 | |||
| 630 710 | 30 120 | 120 250 | 250 390 | 390 560 | 560 780 | |||
| 710 800 | 30 130 | 130 280 | 280 440 | 440 620 | 620 860 | |||
| 800 900 | 30 150 | 150 310 | 310 490 | 490 690 | 690 960 | |||
| 900 1000 | 40 160 | 160 340 | 340 540 | 540 760 | 760 1040 | |||
| 1000 1120 | 40 170 | 170 370 | 370 590 | 590 840 | 840 1120 | |||
| 1120 1250 | 40 180 | 180 400 | 400 640 | 640 910 | 910 1220 | |||
| 1250 1400 | 60 210 | 210 440 | 440 700 | 700 1000 | 1000 1340 | |||
| 1400 1600 | 60 230 | 230 480 | 480 770 | 770 1100 | 1100 1470 | |||
| 1600 1800 | 60 250 | 250 520 | 520 830 | 830 1220 | 1220 1650 | |||

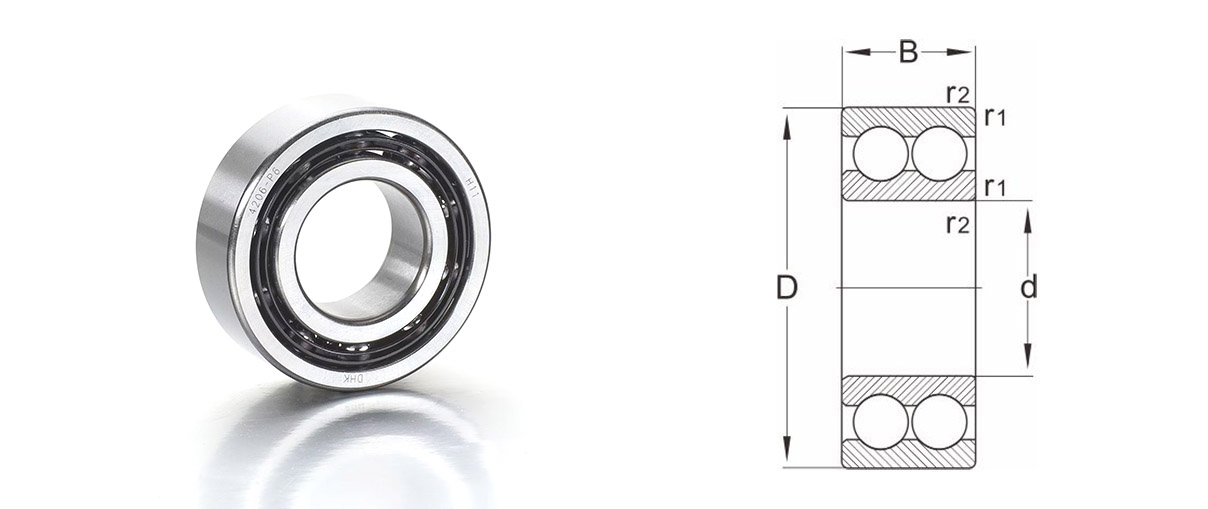

Mod*el | Dimensiones | rated onus | C5(um) | Extrema celeritas | Pondus | ||||
d | D | B | r1,r2 Min | Dynamic onus Cr | Static onus Cor | Adipe lubrication | Oleum lubricationis | ||
4200B.TV | 10 | 30 | 14 | 0.6 | 9.2 | 5.2 | 18000 | 22000 | 0.05 |
4201B.TV | 12 | 32 | 14 | 0.6 | 10.6 | 6.2 | 17000 | 20000 | 0.05 |
4202B.TV | 15 | 35 | 14 | 0.6 | 11.9 | 7.5 | 14000 | 17000 | 0.06 |
4203B.TV | 15 | 42 | 17 | 1 | 14.8 | 9.5 | 12000 | 15000 | 0.12 |
4303B.TV | 17 | 40 | 16 | 0.6 | 14.8 | 9.5 | 12000 | 15000 | 0.09 |
4205B.TV | 17 | 47 | 19 | 1 | 19.5 | 13.5 | 10000 | 13000 | 0.16 |
4204B.TV | 20 | 47 | 18 | 1 | 17.8 | 12.5 | 10000 | 13000 | 0.14 |
4304B.TV | 20 | 52 | 21 | 1.1 | 23.4 | 16 | 9500 | 12000 | 0.21 |
4205B.TV | 25 | 52 | 18 | 1 | 19 | 14.5 | 9000 | 11000 | 0.16 |
4309B.TV | 25 | 62 | 24 | 1.1 | 31.9 | 22.5 | 8500 | 10000 | 0.34 |
4206B.TV | 30 | 62 | 20 | 1 | 26 | 20.5 | 8000 | 9500 | 0.26 |
4306B.TV | 30 | 72 | 27 | 1.1 | 41.2 | 30 | 7000 | 8500 | 0.50 |
4207B.TV | 35 | 72 | 23 | 1.1 | 35.1 | 28.5 | 6700 | 8000 | 0.40 |
4307B.TV | 35 | 80 | 31 | 1.5 | 50.5 | 38 | 6300 | 7500 | 0.69 |
4208B.TV | 40 | 80 | 23 | 1.1 | 37.5 | 32.5 | 6000 | 7000 | 0.50 |
4308B.TV | 40 | 90 | 33 | 1.5 | 55.7 | 45 | 5600 | 6700 | 0.95 |
4209B.TV | 45 | 85 | 23 | 1.1 | 39 | 36 | 5600 | 6700 | 0.54 |
4309B.TV | 45 | 100 | 36 | 1.5 | 68.5 | 56 | 5000 | 6000 | 1.25 |
4210B.TV | 50 | 90 | 23 | 1.1 | 40.5 | 40 | 5000 | 6000 | 0.58 |
4310B.TV | 50 | 110 | 40 | 2 | 81.5 | 70 | 4500 | 5300 | 1.70 |
4211B.TV | 55 | 100 | 25 | 1.5 | 45 | 44 | 4800 | 5600 | 0.80 |
4311B.TV | 55 | 120 | 43 | 2 | 97.5 | 83 | 4300 | 5000 | 2.15 |
4212B.TV | 60 | 110 | 28 | 1.5 | 57 | 55 | 4500 | 5300 | 1.10 |
4312B.TV | 60 | 130 | 46 | 2.1 | 112 | 98 | 3800 | 4500 | 2.65 |
4213B.TV | 65 | 120 | 31 | 1.5 | 67.5 | 67 | 4000 | 4800 | 1.45 |
4214B.TV | 70 | 125 | 31 | 1.5 | 70 | 73.5 | 3600 | 4300 | 1.50 |
4215B.TV | 75 | 130 | 31 | 1.5 | 72.5 | 80 | 3400 | 4000 | 1.60 |
4216B.TV | 80 | 140 | 33 | 2 | 80.5 | 90 | 3200 | 3800 | 2.00 |
4217B.TV | 85 | 150 | 36 | 2 | 93.6 | 102 | 3000 | 3600 | 2.55 |
4218B.TV | 90 | 160 | 40 | 2 | 112 | 122 | 2800 | 3400 | 3.20 |
4220B.TV | 100 | 180 | 46 | 2.1 | 140 | 156 | 2600 | 3200 | 4.70 |
Anni Usus Opus
Mos muneris
Technology patented
Ningbo DHK Precision Bearing Co., Ltd. ("DHK" pro brevi) specialist inceptis in R&D versatus est, factorum et venditio gestuum, sita est in Ningbo Zhenhai Zonam oeconomicam cum opportuno translatione. Cum institutio per decennium, "technologia", "qualitas" et "officium", semper primae quaestiones in mente nostra causa evolutionis fuerunt. Certos fructus et speciales nativus operas praebemus pro global conatibus in gravibus industriae et satisfactionem obtinuit et bonam famam plurium inceptorum domi militiaeque consecutus est.
DHK maxime producit cylindros gestus, cylindrus conicos gestus, cylindrus gestus auto-adnexos, gestus globulos, ac varios gestus et gestus non-commodus cum superficie specialiter tractatis. Hactenus DHK gestae in talibus campis late applicatae sunt ut machinae machinariae, sentinae industriae, instrumentum machinae, machinae compressionis, casus calces, vis venti et metallurgia in regionibus Europaeis et Americanis exculta.
DHK locus mensurae et inspectionis locus gestus in industria habet et apparatum inspectionis summae totius mundi induxit et systema QC in Sinis constituit, ita ut productum qualitatem in omni rotunditate firmans.
DHK transiit IATF16949 systema qualitatis certificationis et ISO14001 systematis certificationis environmental administratio et DHK nationalis summus tech inceptis est.
